How to Install Motorized Roller and Zebra Shades

Installing motorized roller shades or motorized zebra shades is easier than you might think. With basic tools and the right measurements, most installations can be completed in under 20 minutes per window. This guide walks you through each step to ensure a smooth, secure, and professional-looking result.

What You’ll Need

  • measuring_tape

    Steel Tape Measure

    Measure the Bracket Locations

  • edit

    Pencil

    For marking drill points

  • tools_power_drill

    Power Drill

    To drill holes and install screws

  • group

    A friend to help

    Assist with installation

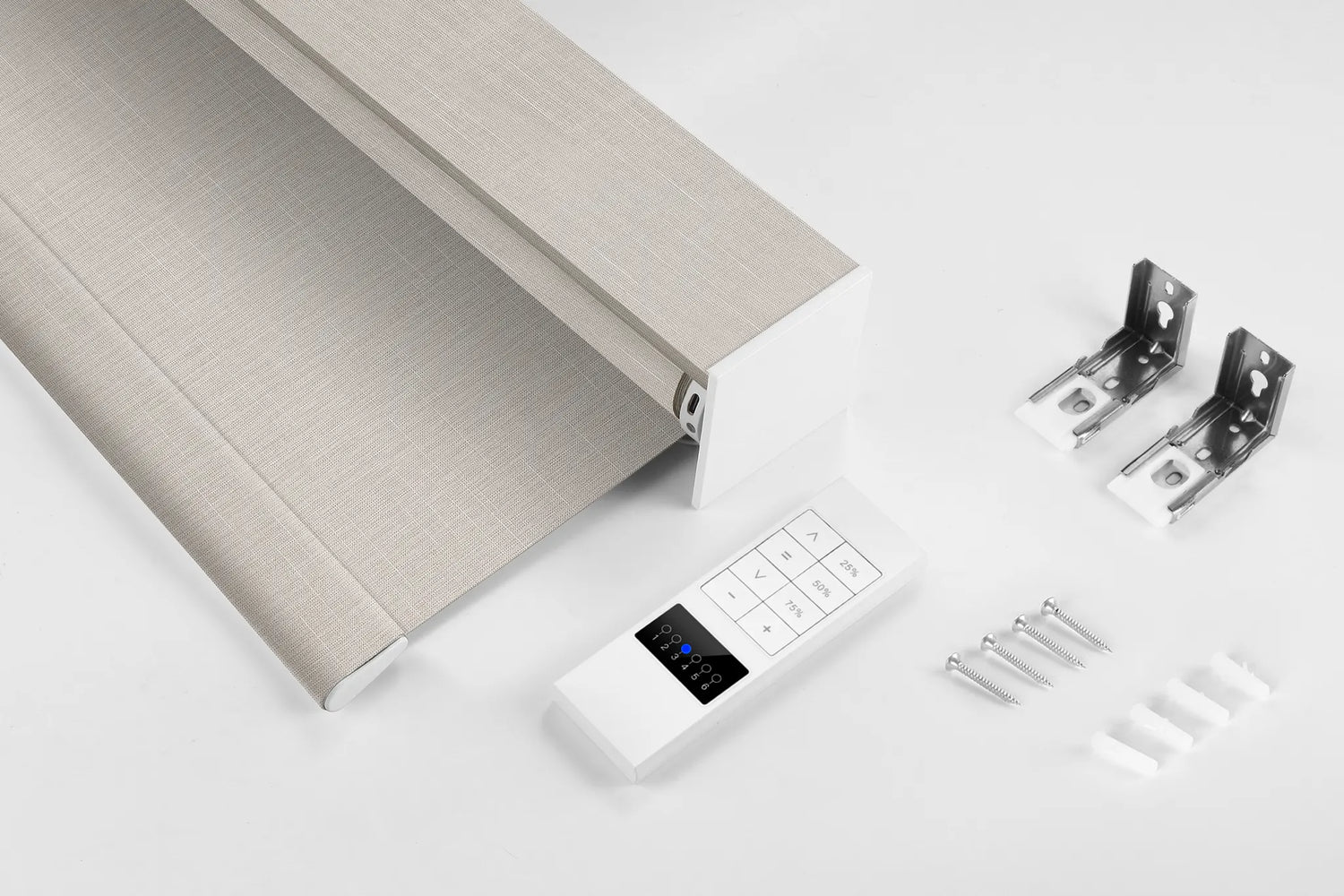

    What's In the Box

    Your package includes everything you need to install your motorized blinds:

    • Roller Shades or Zebra Shades
    • Mounting brackets
    • Screws & anchors
    • Installation kit
    • Remote control

    💡 Check all items before starting your installation.

    Video Tutorials

    Here’s a quick look at how to install motorized roller & zebra shades.

    If you’d like to pause the video, replay a step, or zoom in for details, you can watch the full tutorials on our YouTube channel.

    Watch on YouTube

    7 Easy Steps to Install Your Motorized Roller or Zebra Shades

    Example shows inside-mount installation; outside-mount steps are similar.

    Step 1: Attach the Brackets to the Headrail

    To start installing your motorized roller shades or motorized zebra shades, secure the mounting brackets to the ends of the shade headrail. Position each bracket about 4 inches (≈10 cm) from the edges. Correct bracket placement ensures your window shades operate smoothly and remain stable over time.

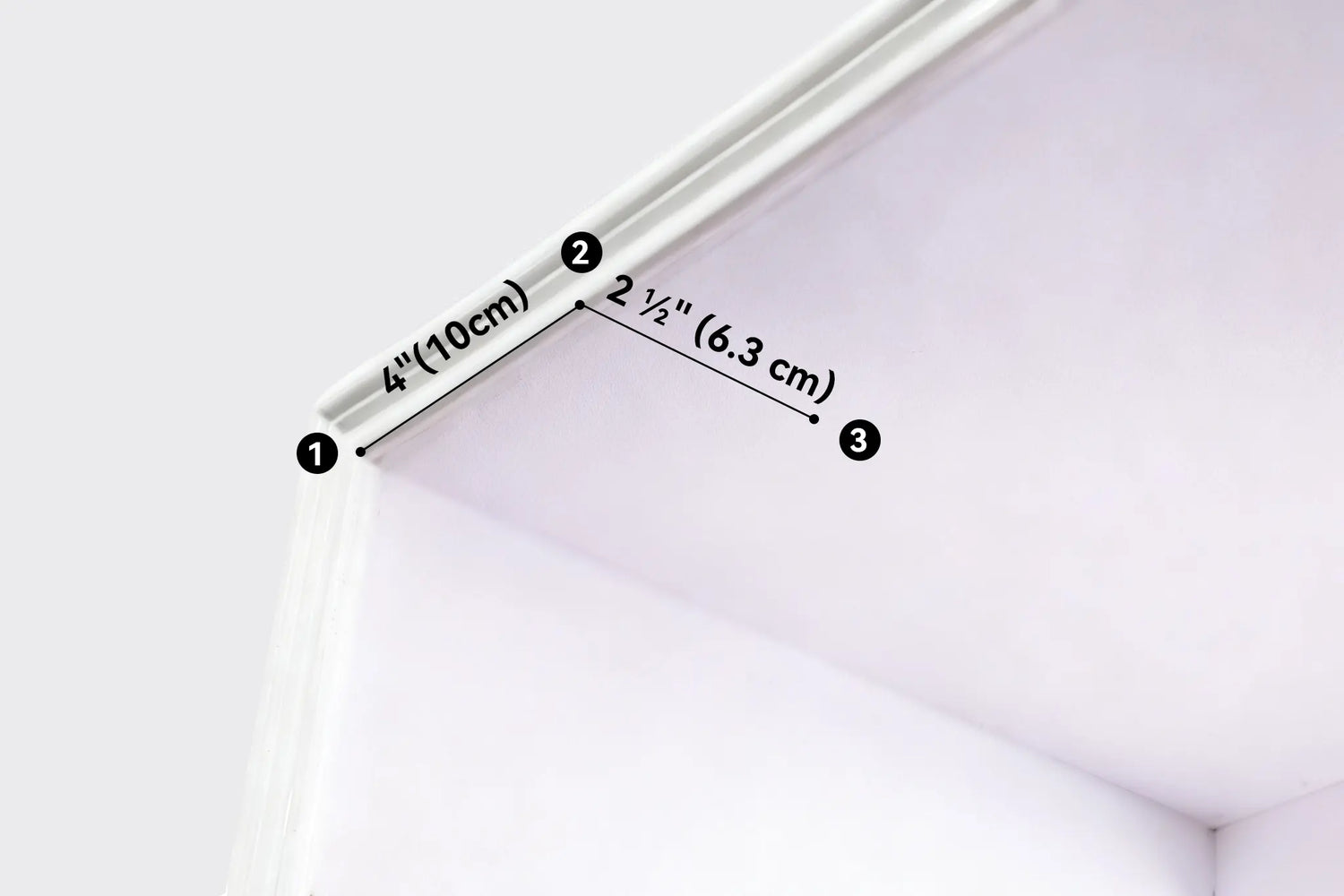

    Step 2: Mark the Shade Placement

    Hold your motorized shades up to the top of the window recess to decide the final placement. Use a pencil to mark where the brackets will be installed.

    Tip: If there are obstacles like window handles, locks, or cranks, make sure your roller shades or zebra shades will move freely without obstruction.

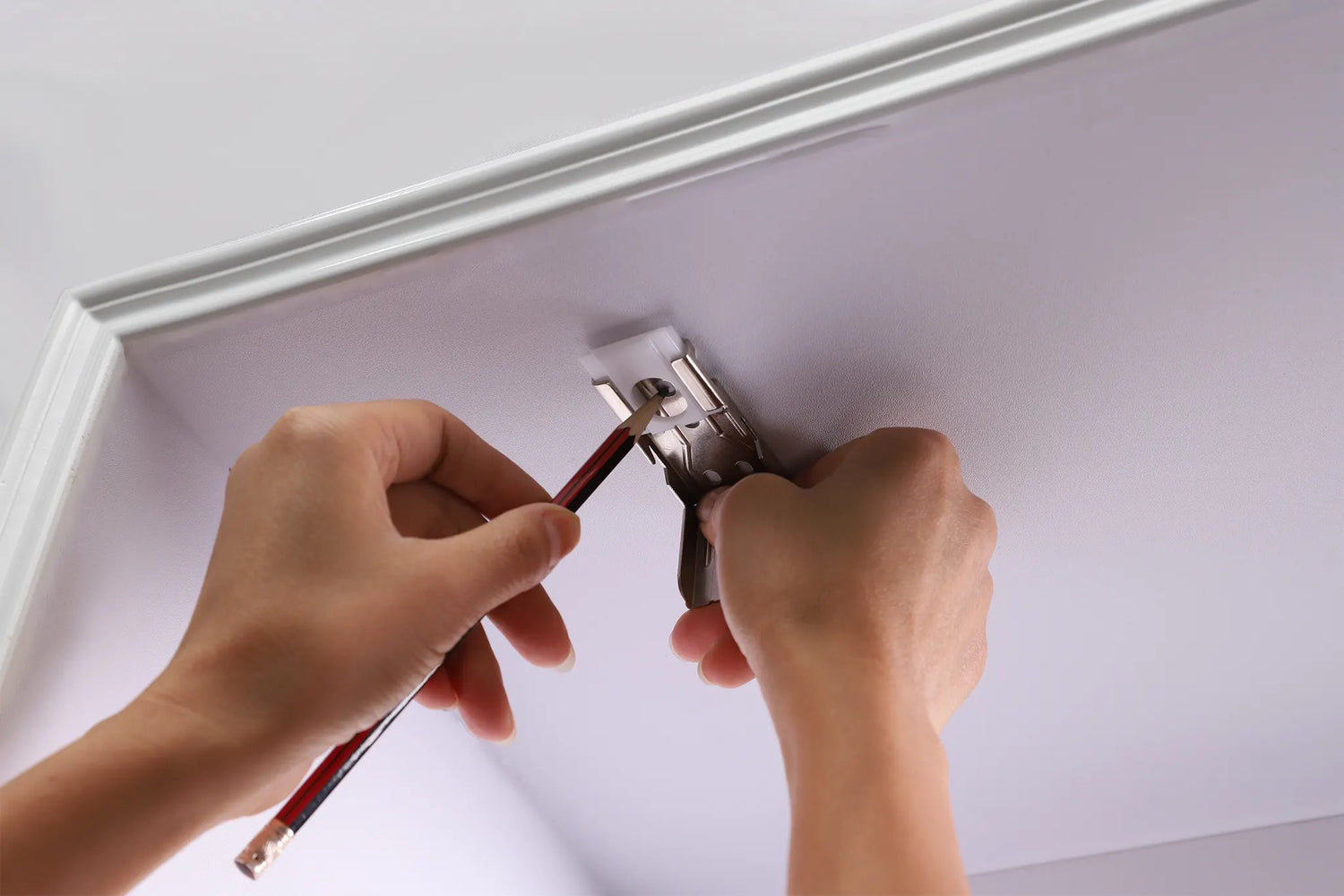

    Step 3: Mark Screw Holes

    Remove the brackets from the headrail. Align them with your pencil marks on the window frame and mark the positions of the screw holes. Accurate marking helps your motorized shades installation go smoothly.

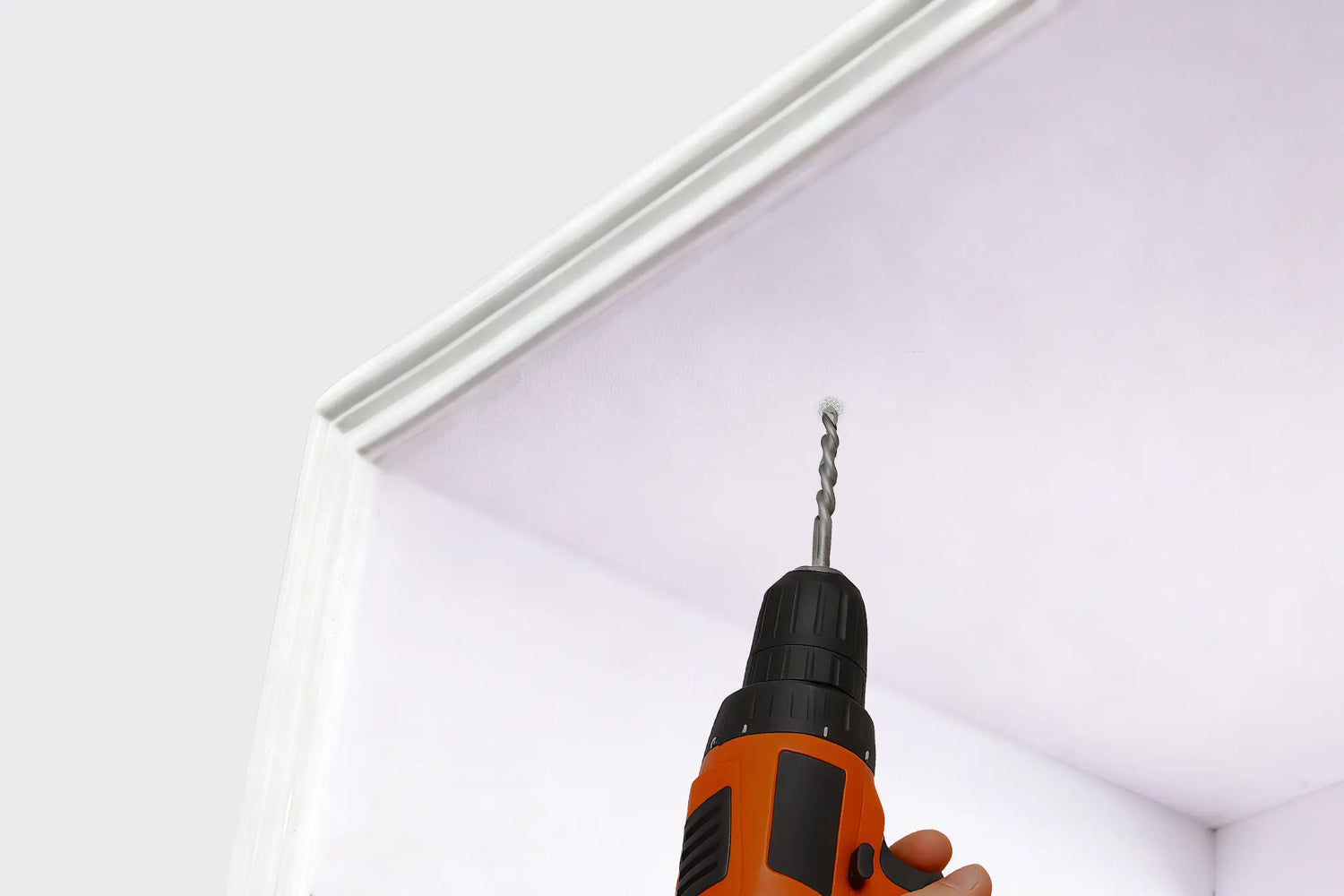

    Step 4: Drill Pilot Holes

    Use a drill to create pilot holes at the marked screw locations. This step is important for secure window shades installation and ensures your motorized roller shades or zebra shades stay firmly in place.

    Installation

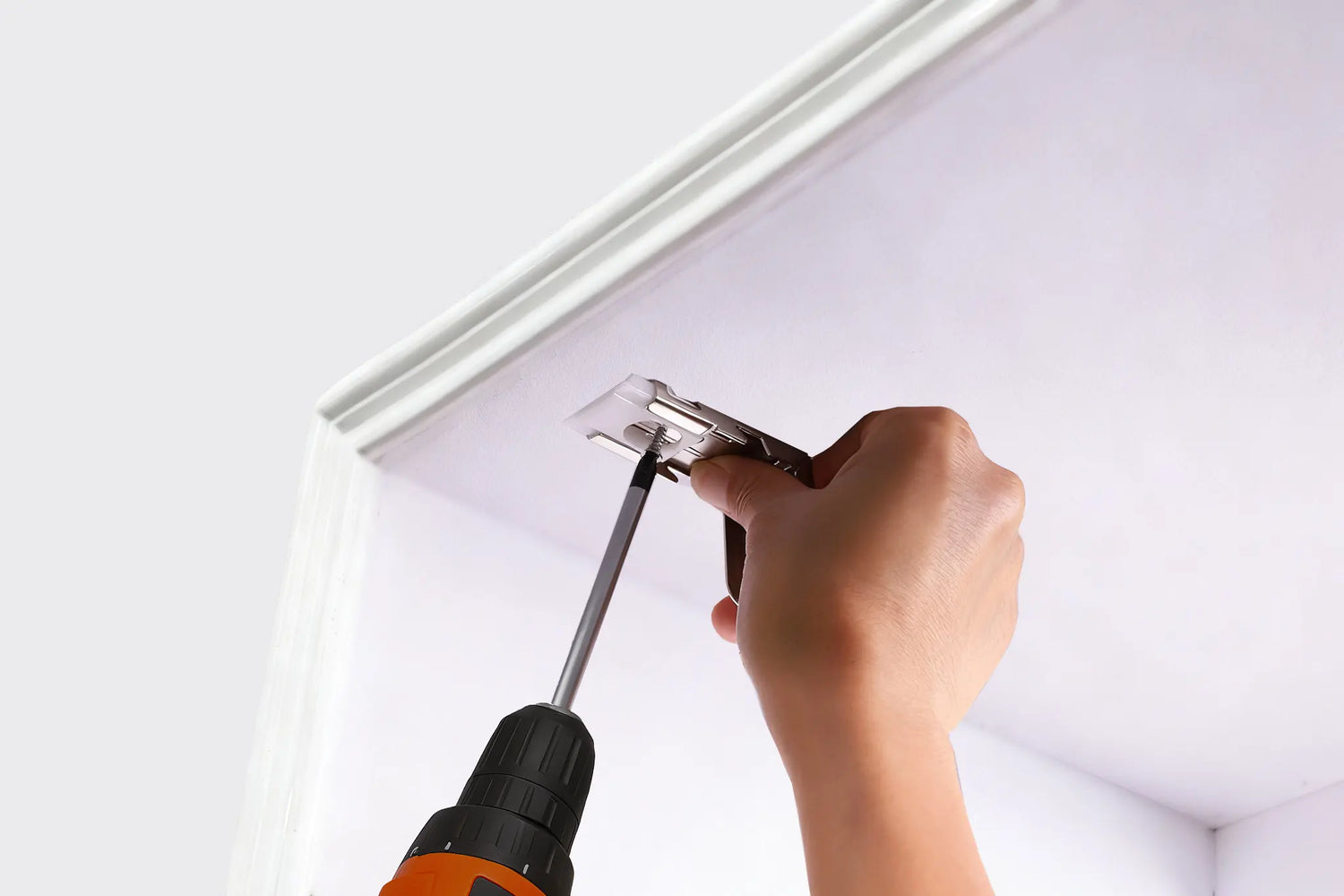

    Step 5: Install Wall Anchors

    Insert wall anchors into the drilled holes. Anchors provide extra support for your motorized shades, especially when installing on drywall, ensuring your window shades are secure and stable.

    FAQs

    A: Yes! Our motorized roller shades and zebra shades come with all the necessary hardware and an easy-to-follow guide. Most customers can install them using a drill, a stepladder, and a Pencil.

    A: You only need basic tools: a drill, a stepladder, and a Pencil. No special tools are required to install your window shades.

    A: Inside-mount: Fits inside your window recess for a sleek, built-in look. Ensure the recess depth is at least 2 ½" (6.3 cm).

    Outside-mount: Mounts on the wall or window trim, ideal if the recess is too shallow or obstructed. Both options work with motorized shades installation.

    A: Measure the width or height in three spots (top, middle, bottom) and use the smallest measurement. This ensures your roller shades or zebra shades fit snugly and operate smoothly.

    A: Yes, as long as you account for obstacles during measurement and bracket placement. Proper installation ensures your motorized shades will move freely.

    A: Yes, especially when installing on drywall. Anchors provide strong support for your window shades, keeping your motorized roller shades and zebra shades secure.

    A: Our support team is ready to help. Contact us at service@kurlax.com for personalized guidance on your motorized shades installation.

    measurement

    Need More Help?

    Our team is here to make your installation smooth and stress-free.

    If you have questions about measurements, compatibility, or setup, don’t hesitate to reach out — we’re happy to help.

    Contact us at service@kurlax.com for personalized support or check our Measure Guide now.

    Get Expert Assistance
